1988 BMG Drum Mix Plant with Silos $400,000 USD

1988 BMG Drum Plant

- Cold Feed System

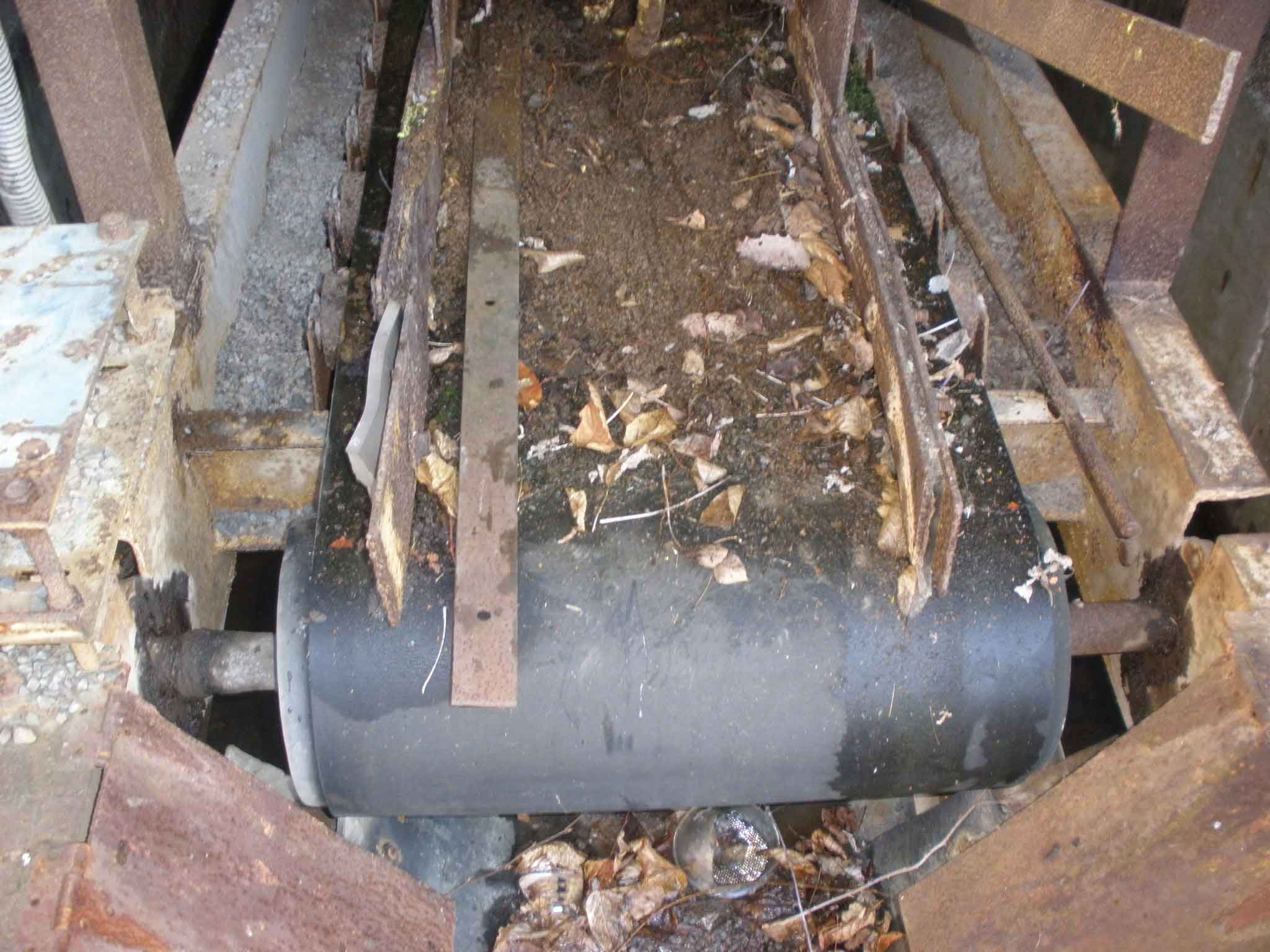

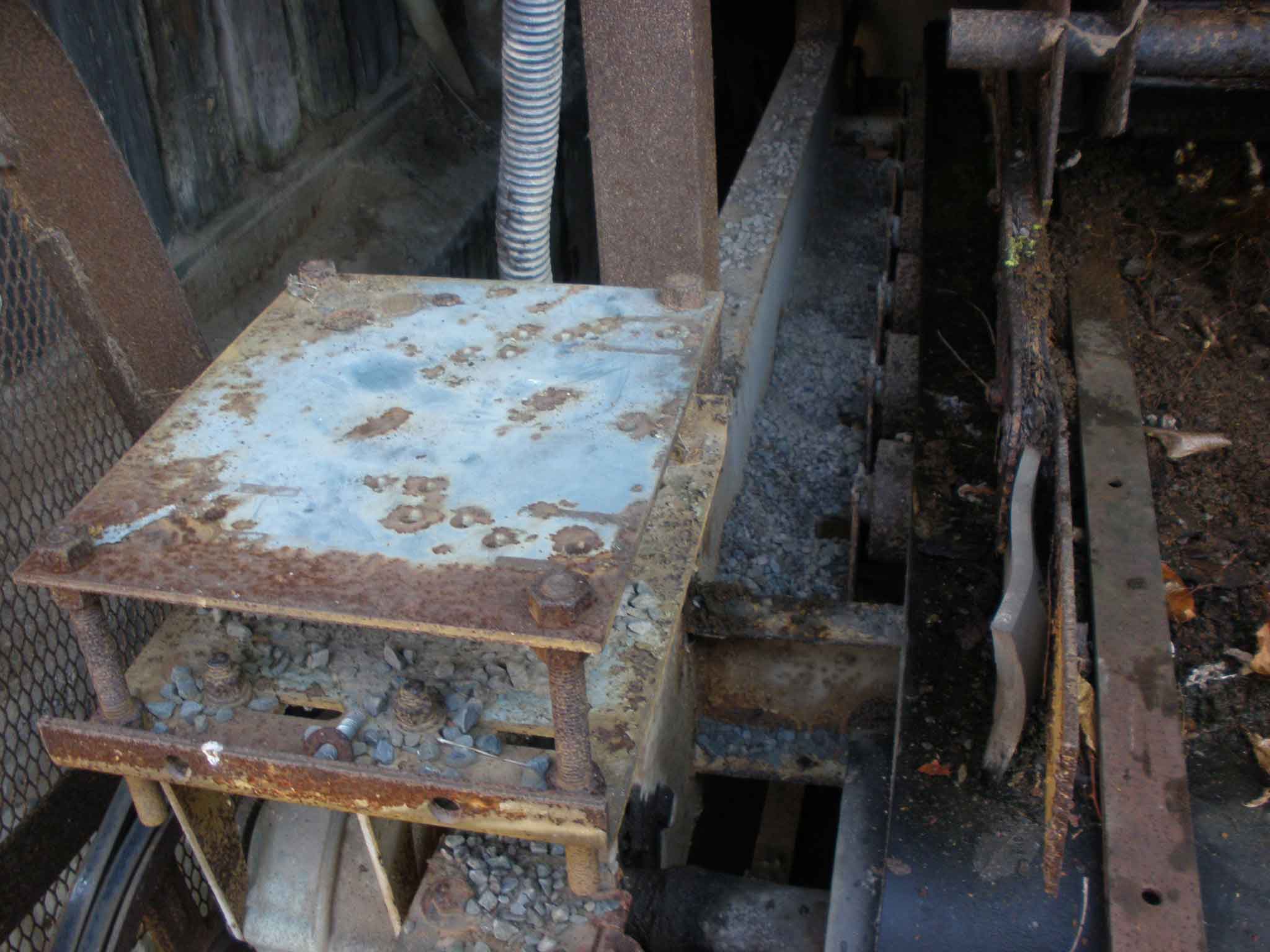

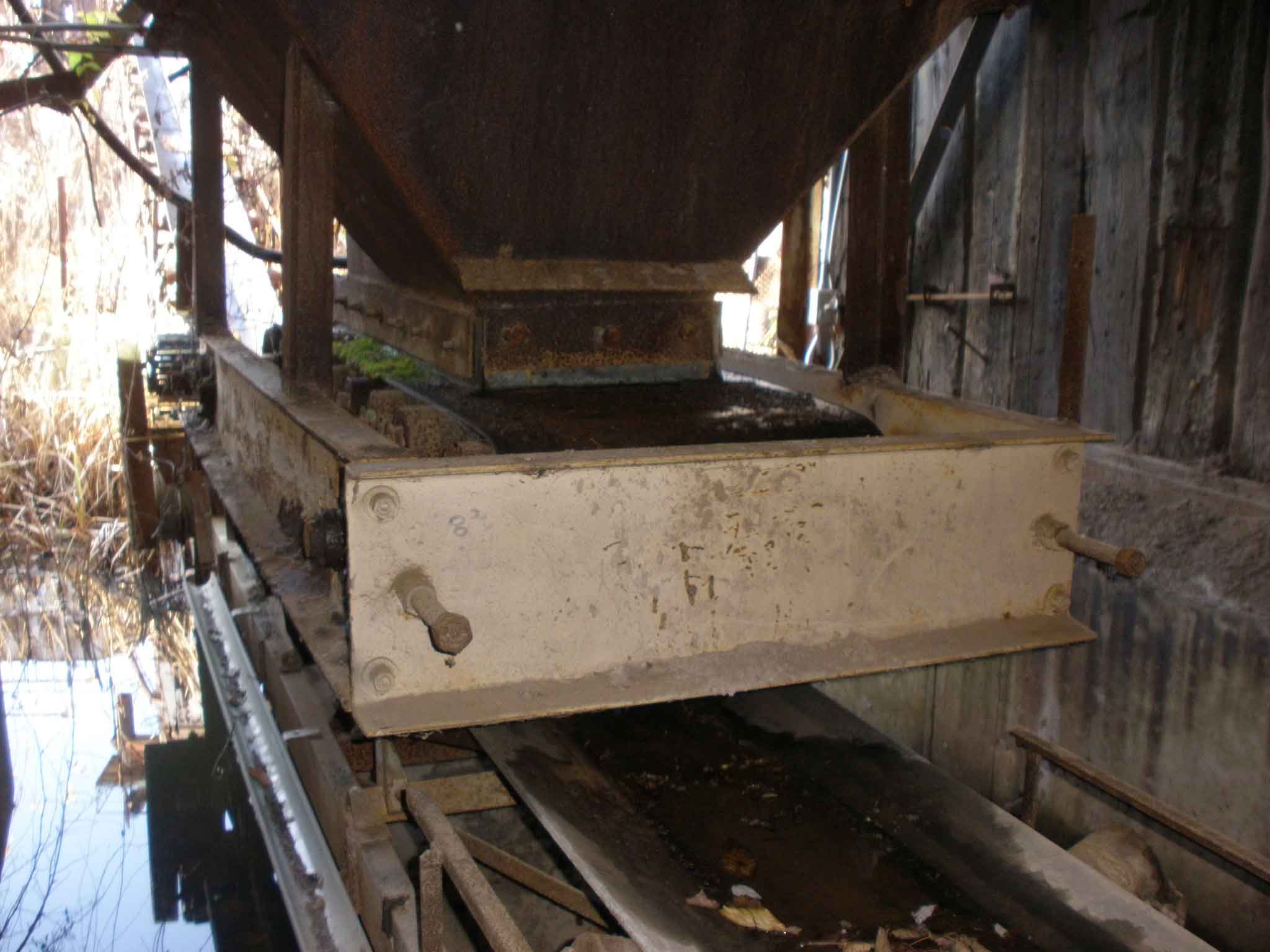

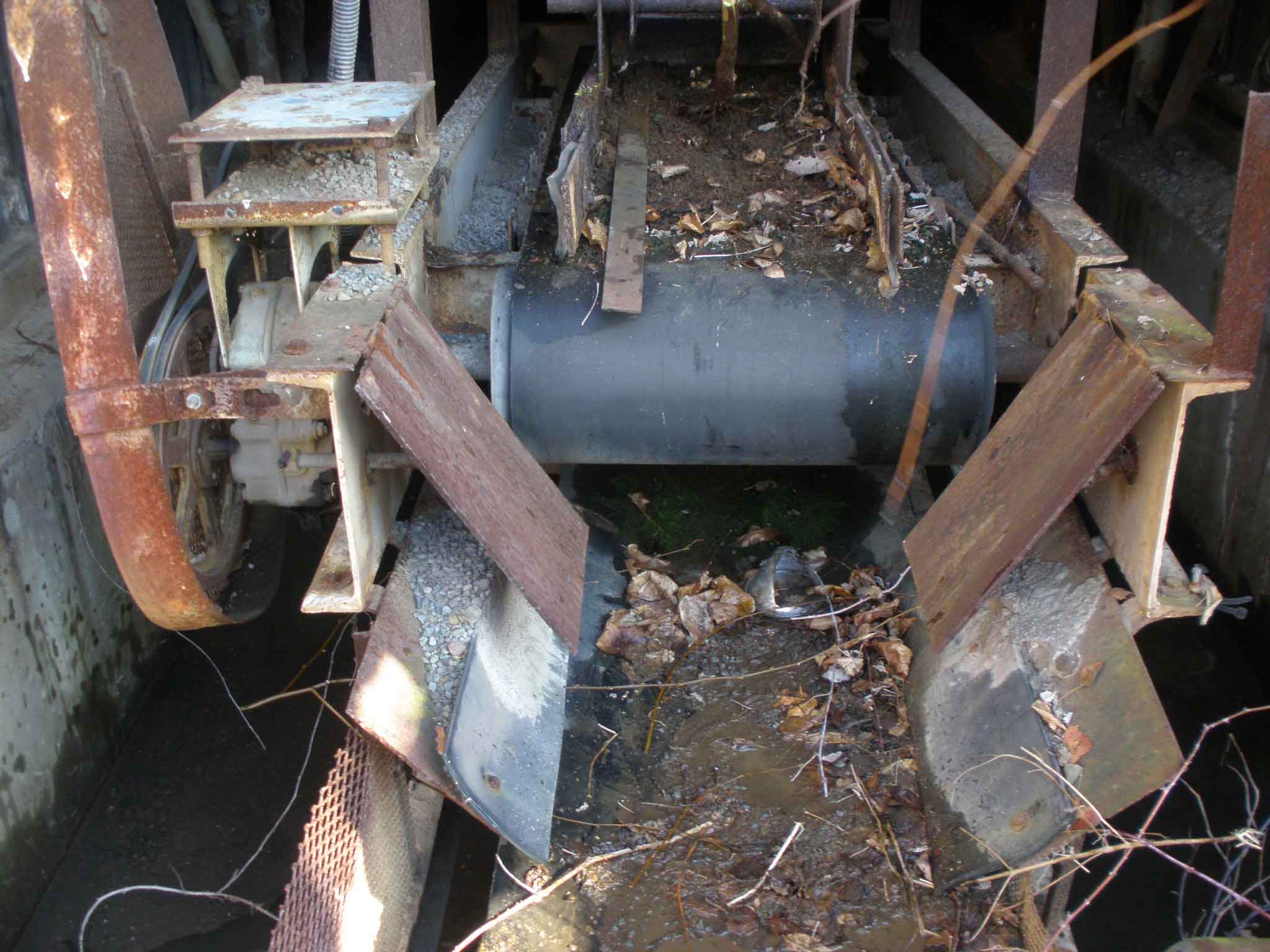

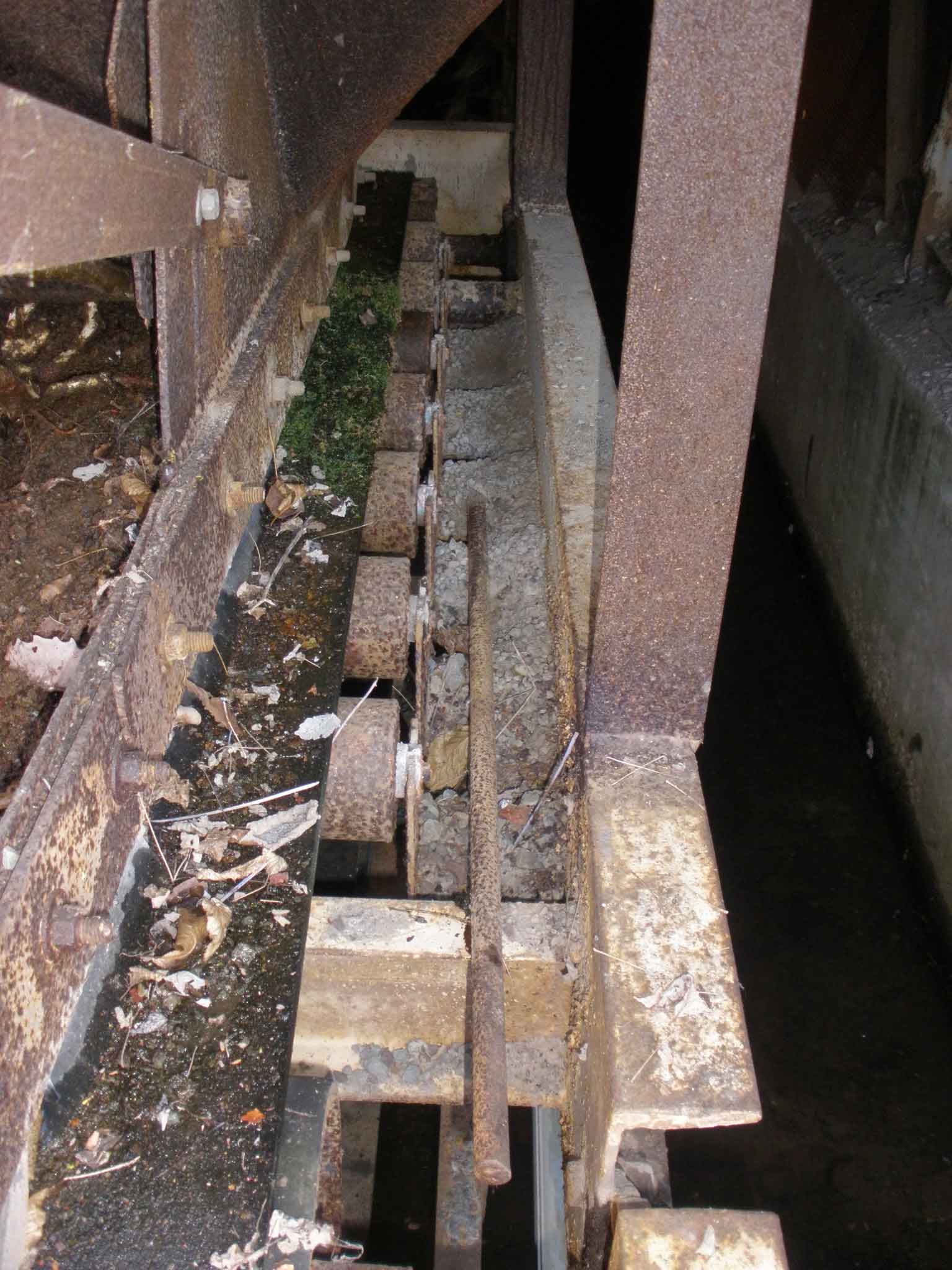

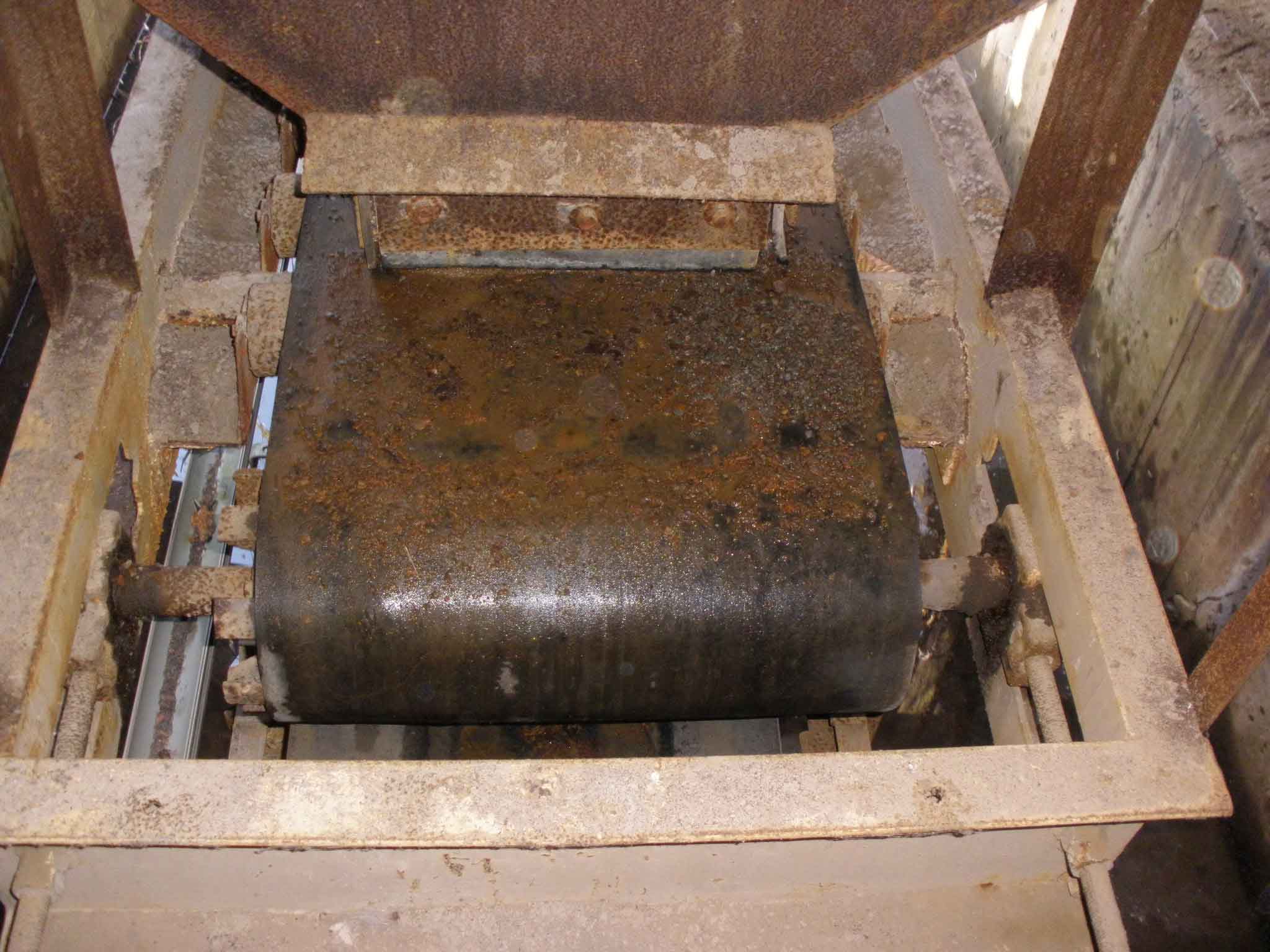

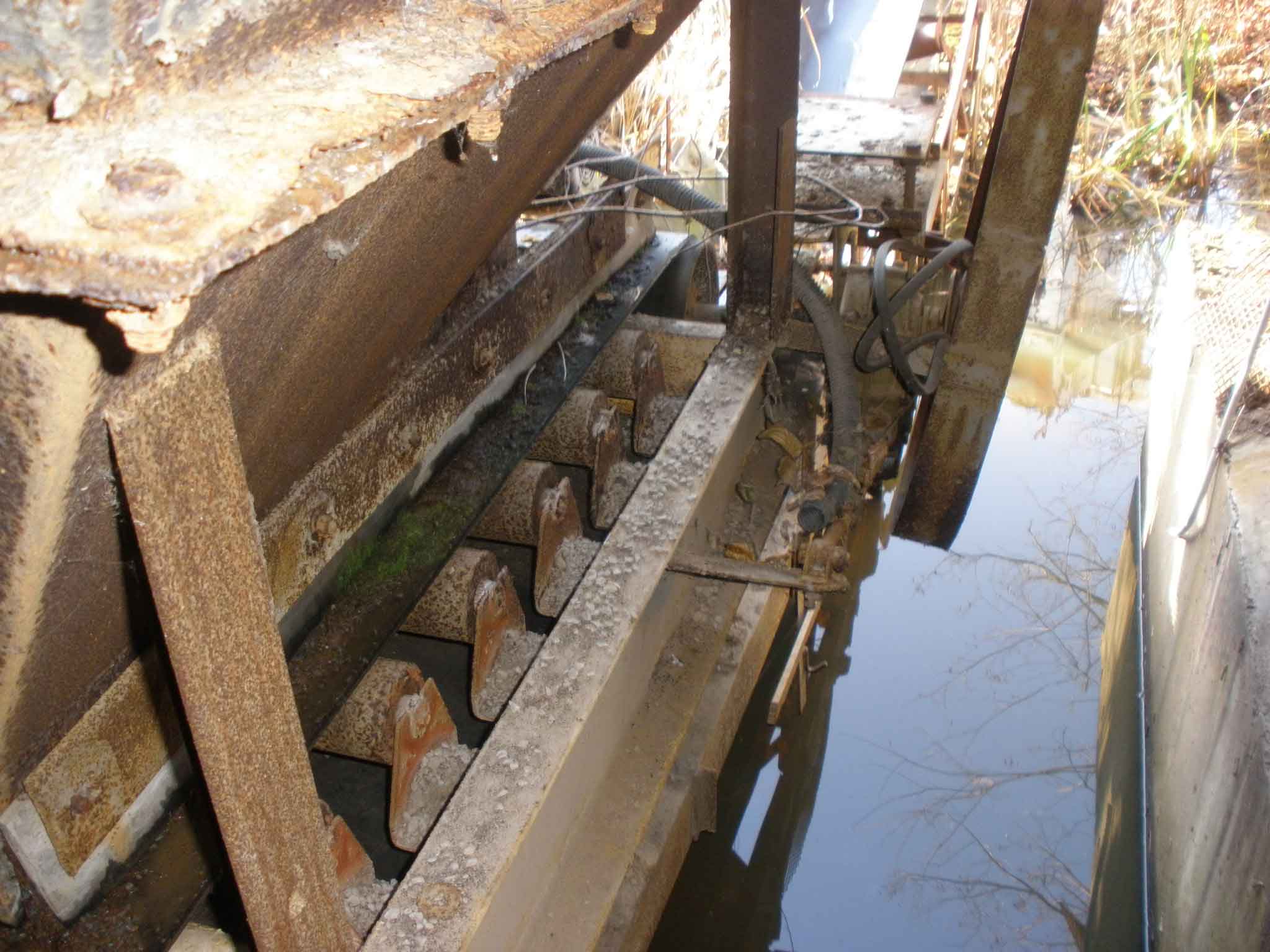

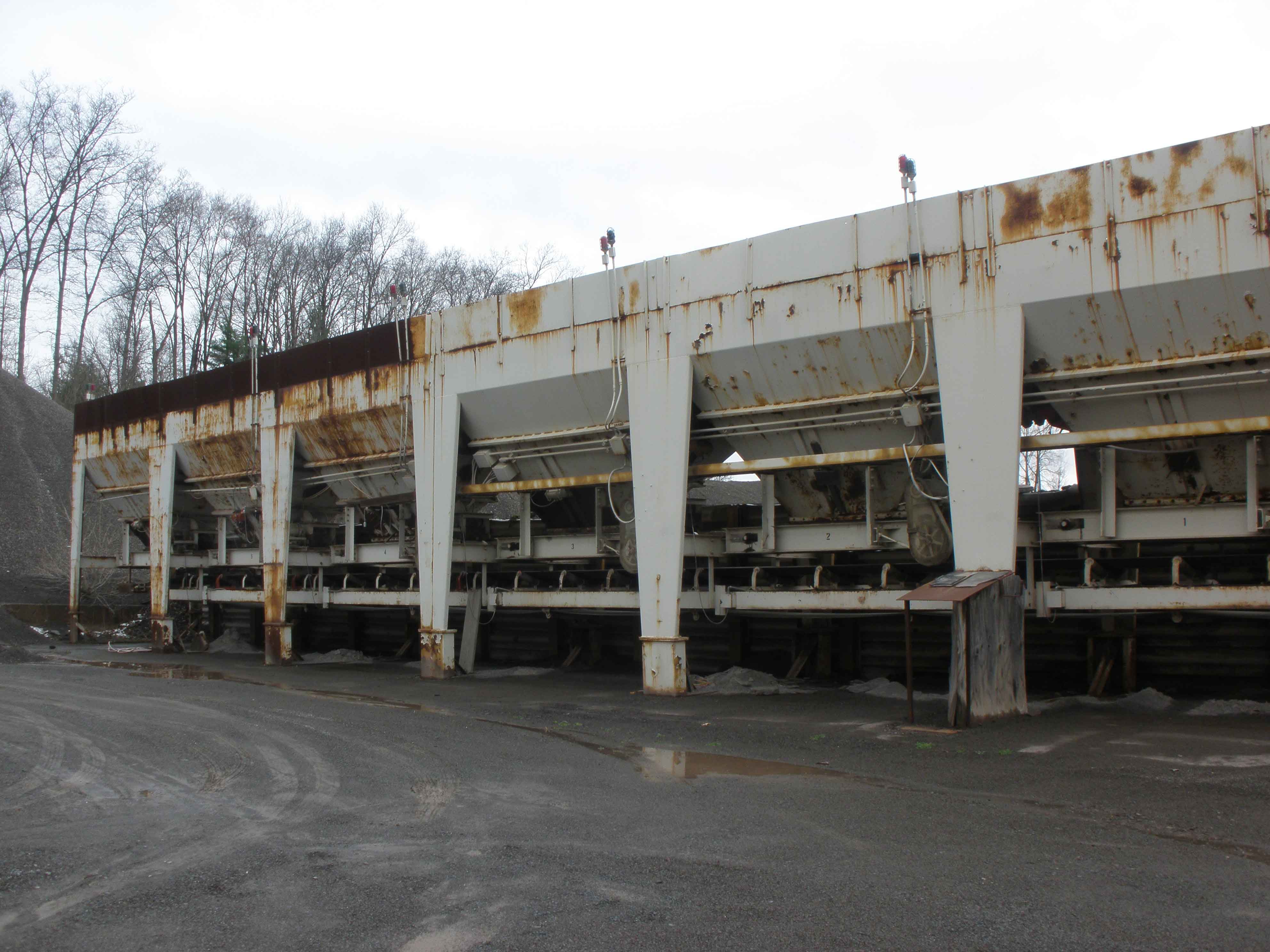

o (5) 10'x14' Virgin Bins, 24"x8' aggregate feeder belts, Var. speed 3HP DC w/ weighbridge

o (1) 10'x14' RAP bin, 30"x9' aggregate feeder belts, Variable Speed 5HP DC w/ weighbridge

o 36" x 96’10” Collector Conveyor, 10 HP (under bins)

o Complete Controls

- Conveyor 30" x 45’, 5HP, 30” Truss, feeds double deck screen.

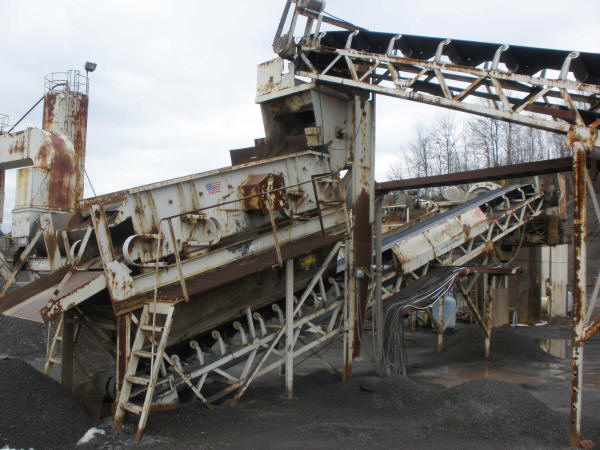

- Double deck, 4'x12' vibrating screen, 10HP

- Conveyor, 30"x40' with Weighbridge, 15 HP, (Feeds Slinger)

- Conveyor, Slinger 24"x74', 7.5HP

- Burner, Hauck Starjet SJ0520, 96.8million BTU, 7300scfm blower, 100 HP

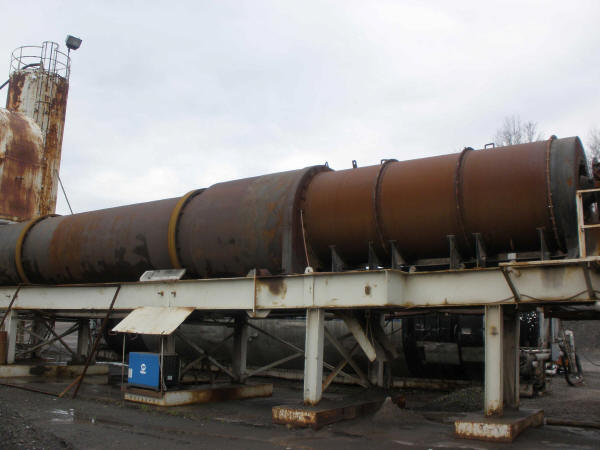

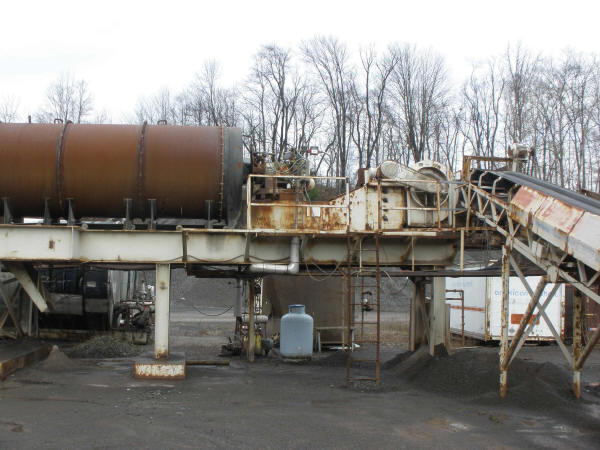

- Dryer, Parallel Flow 7'4"x40', (2) 50 HP motors, Trunnion Driven

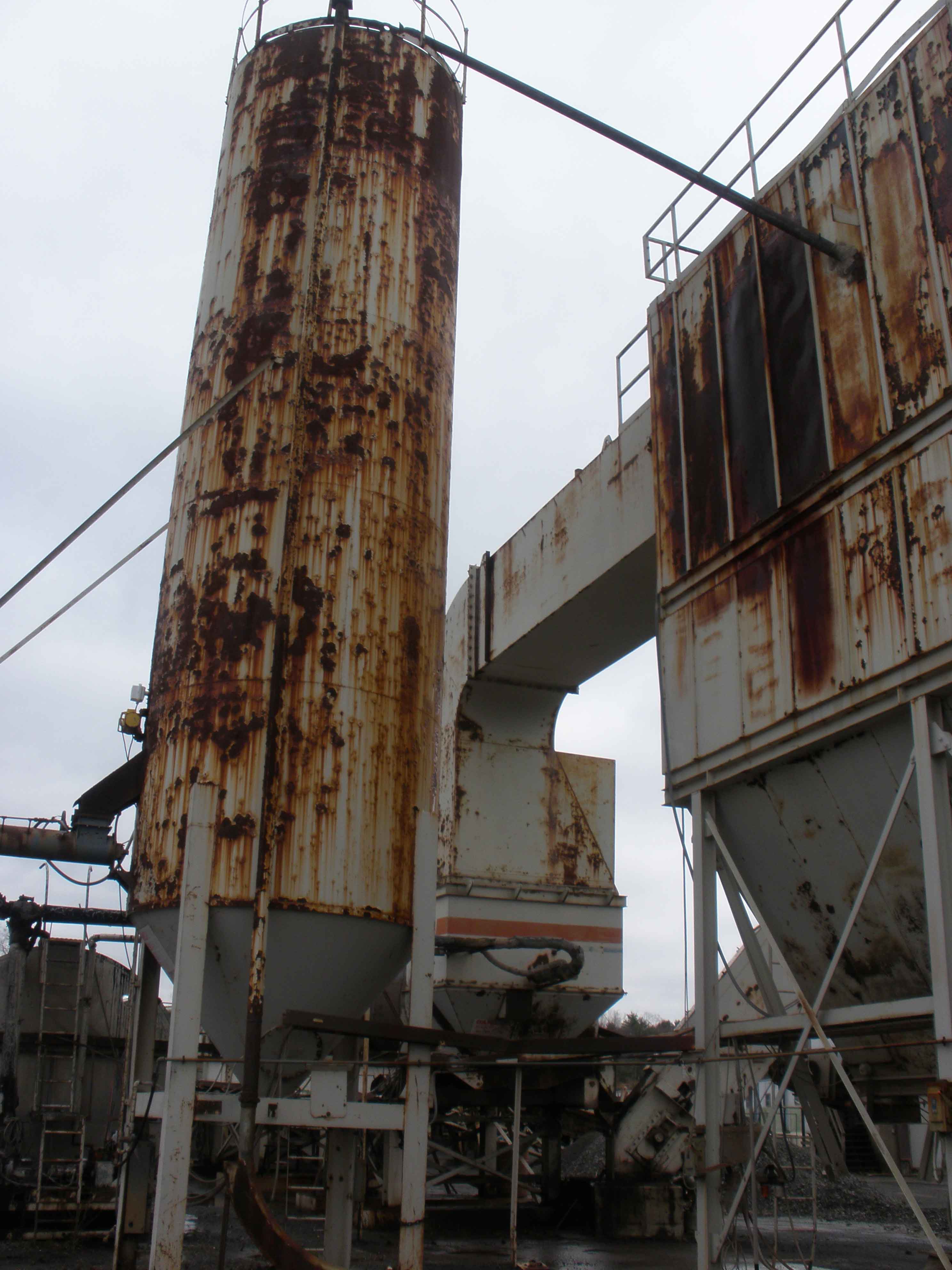

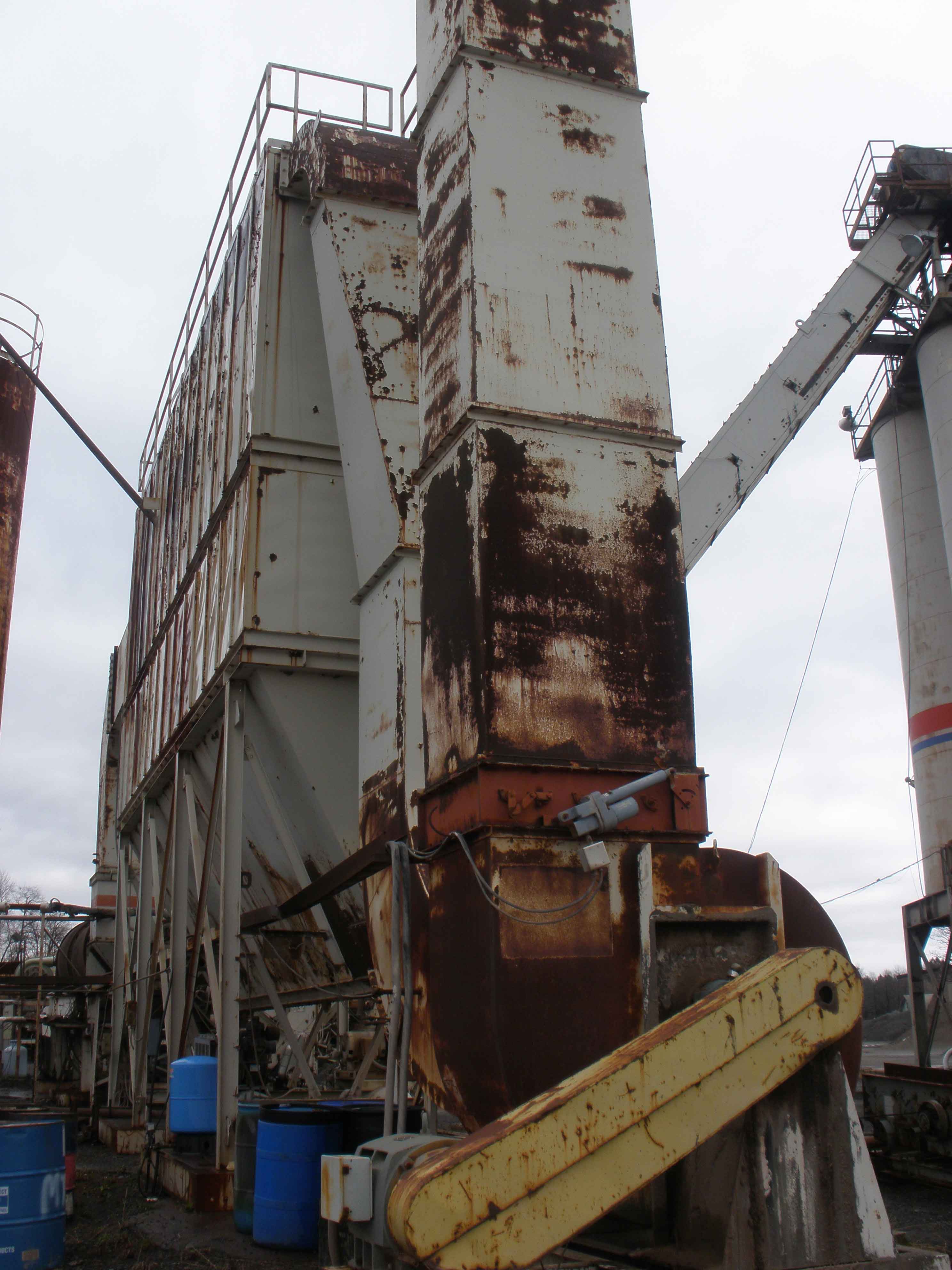

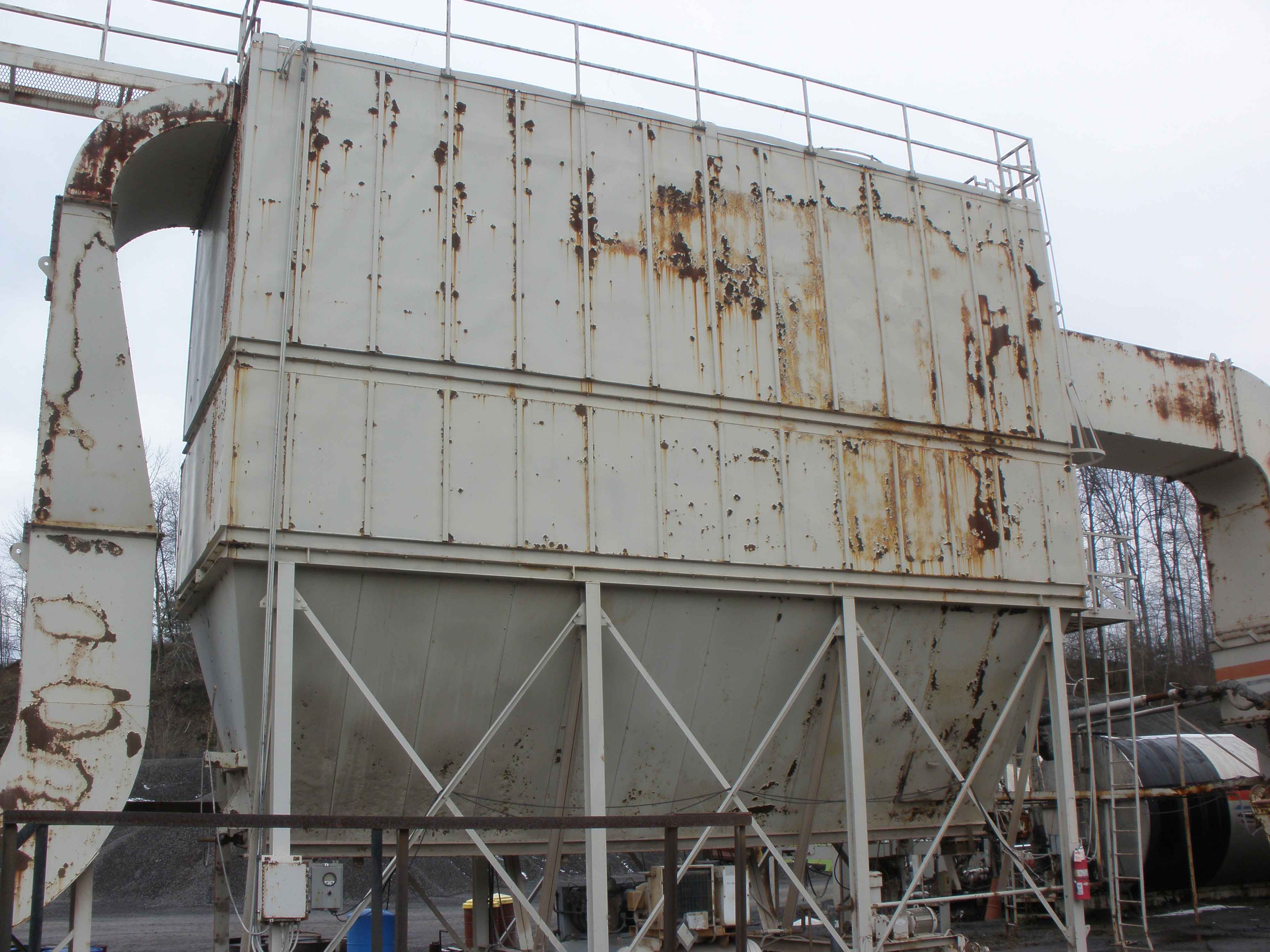

- Baghouse, Filtering Area: 13,199sq.ft / 672 bags, 60k CFM, 5.15air:1cloth, 40HP Compressor

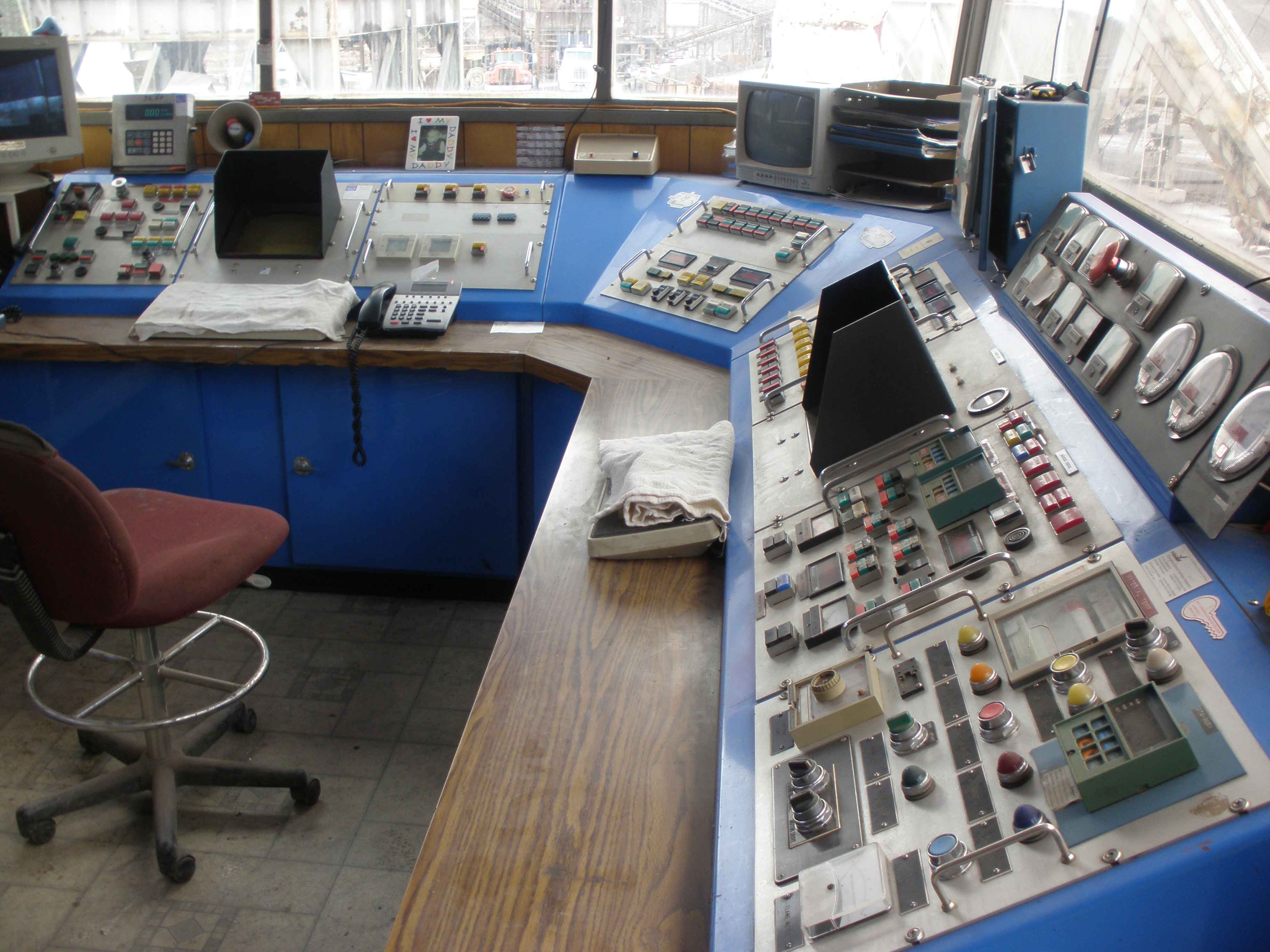

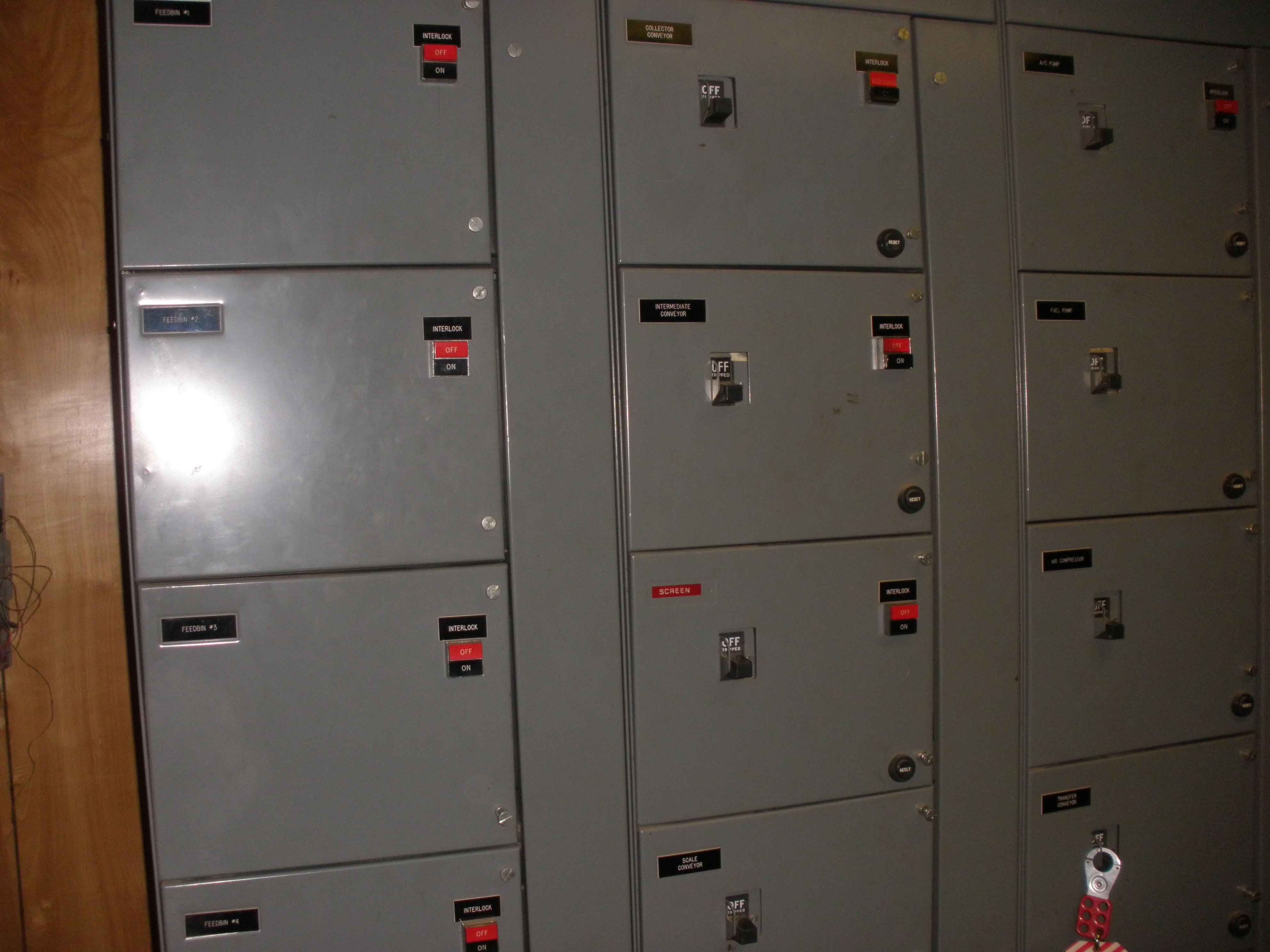

- BMG / Seltec MN: AD500 Plant and Silo Controls

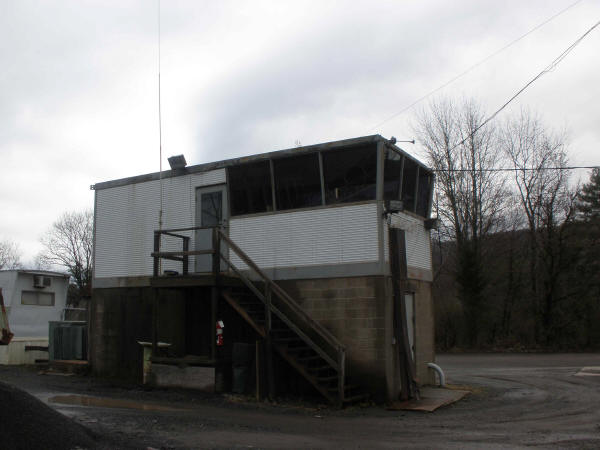

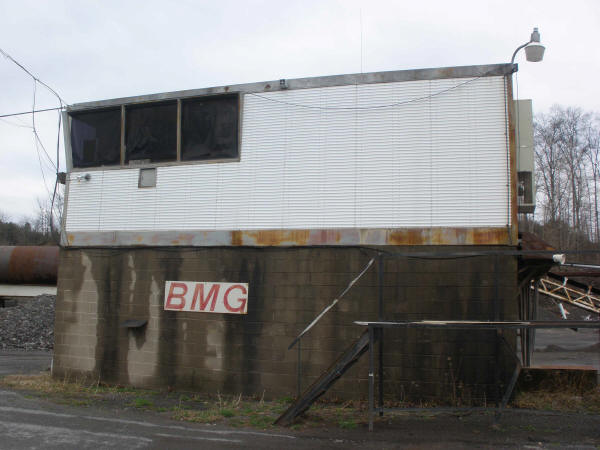

- Control House 11.5’ wide x 27’ long x 10’ high

Silo System

- Conveyor, Drag Slat 36"x87', 350TPH, 100HP, Hot Oil Heat

- Conveyor, 36"x16' Drag Slat Transfer, 30HP, 450TPH capacity

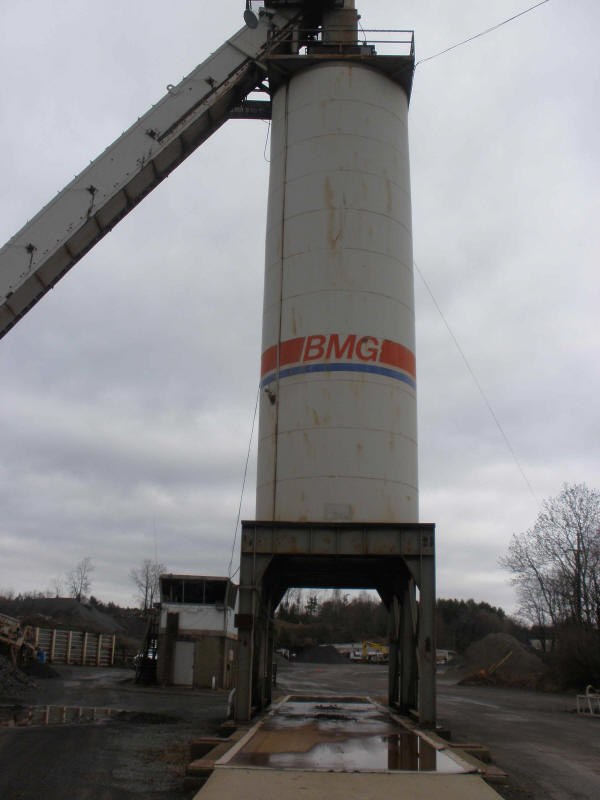

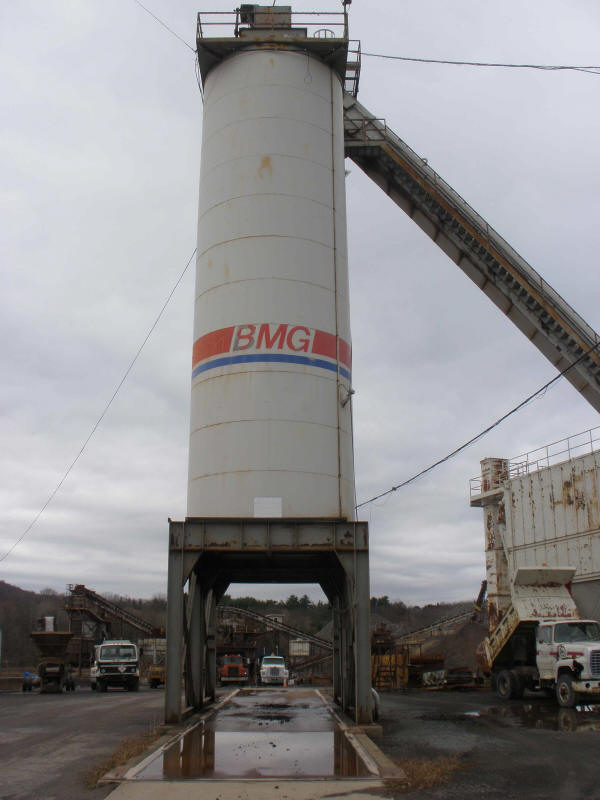

- (2) 250ton Stationary Silos, Insulated, Cone - Hot Oil Heated, 12'x12' drive clearance, 48 Hour Storage, air clam gates, safety gates, totally air operated

- Scale, Truck 10'x80' 60ton, Low Profile, Completely enclosed frame w/ bulkheads, Steel weighbridge, Hydraulic load cells, Digital weigh display in control room

- Ingersoll-Rand 15T Air Compressor w/ 120gal tank, 20HP

Asphalt Storage Tanks

- Asphalt Storage Tank, 30,000 gal., Stationary, w/ External Heat Exchanger, Hot Oil Heater 2,1mBTU/hr

1963* Simplicity Asphalt Batch Plant 6,000lb,, 5 Cold Bins w/ misc. Feeders, 8'x28' Counterflow Dryer w/o burner, Cyclone, Batch Plant Tower mn:S-830-6, 8"x18" Stansteel Hot Elevator (218002A) Photo1

Cold Feed System Components

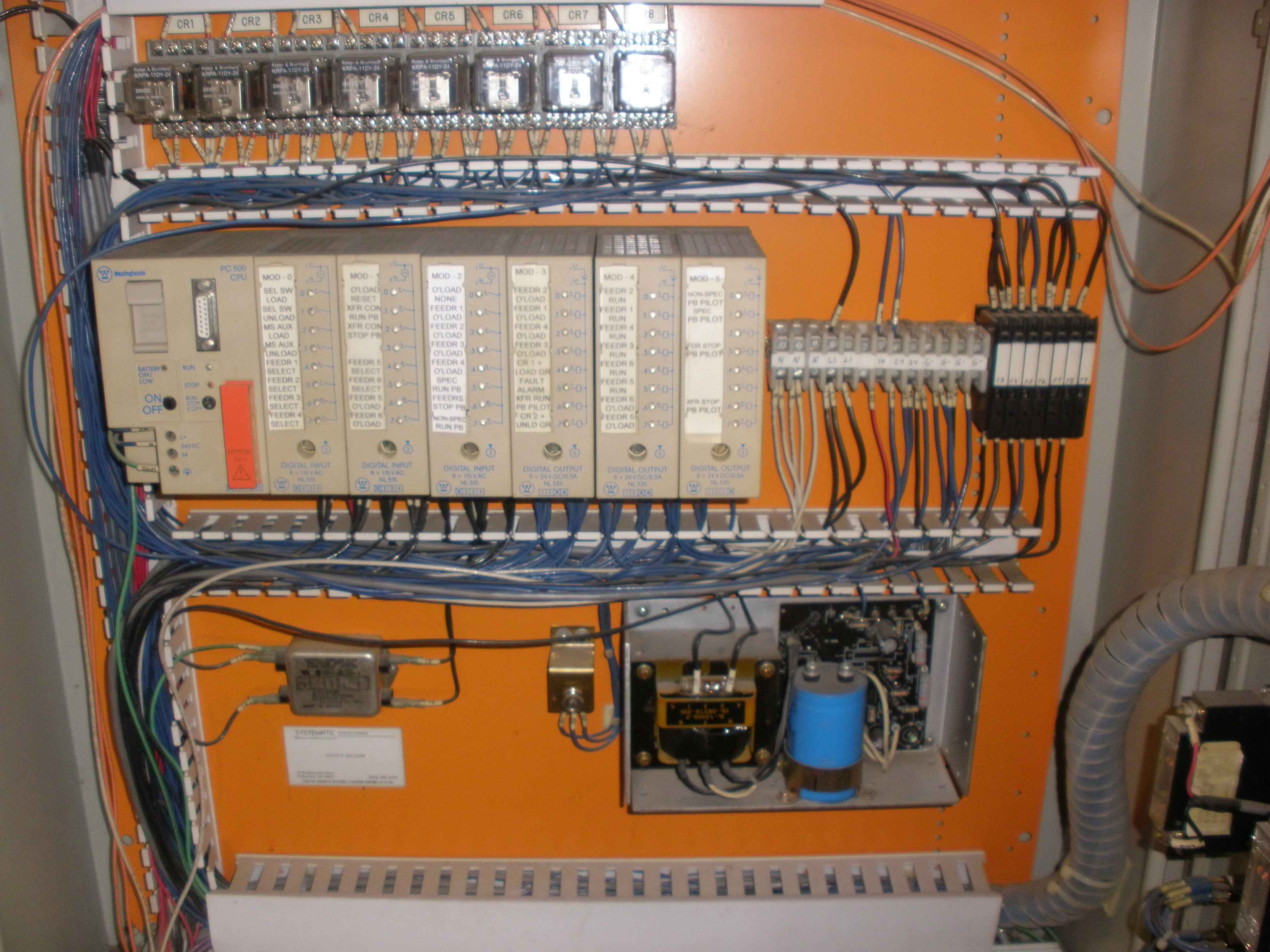

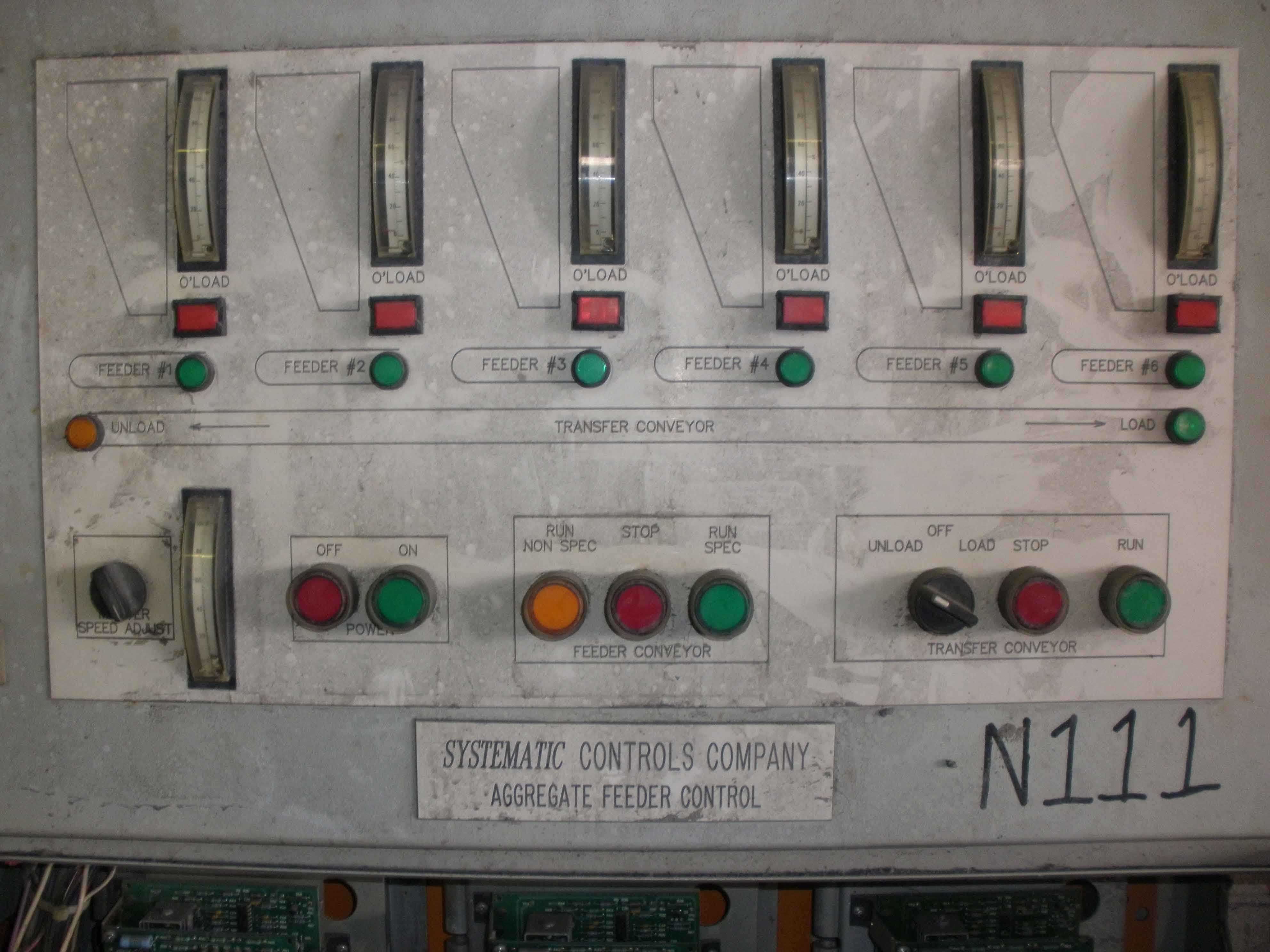

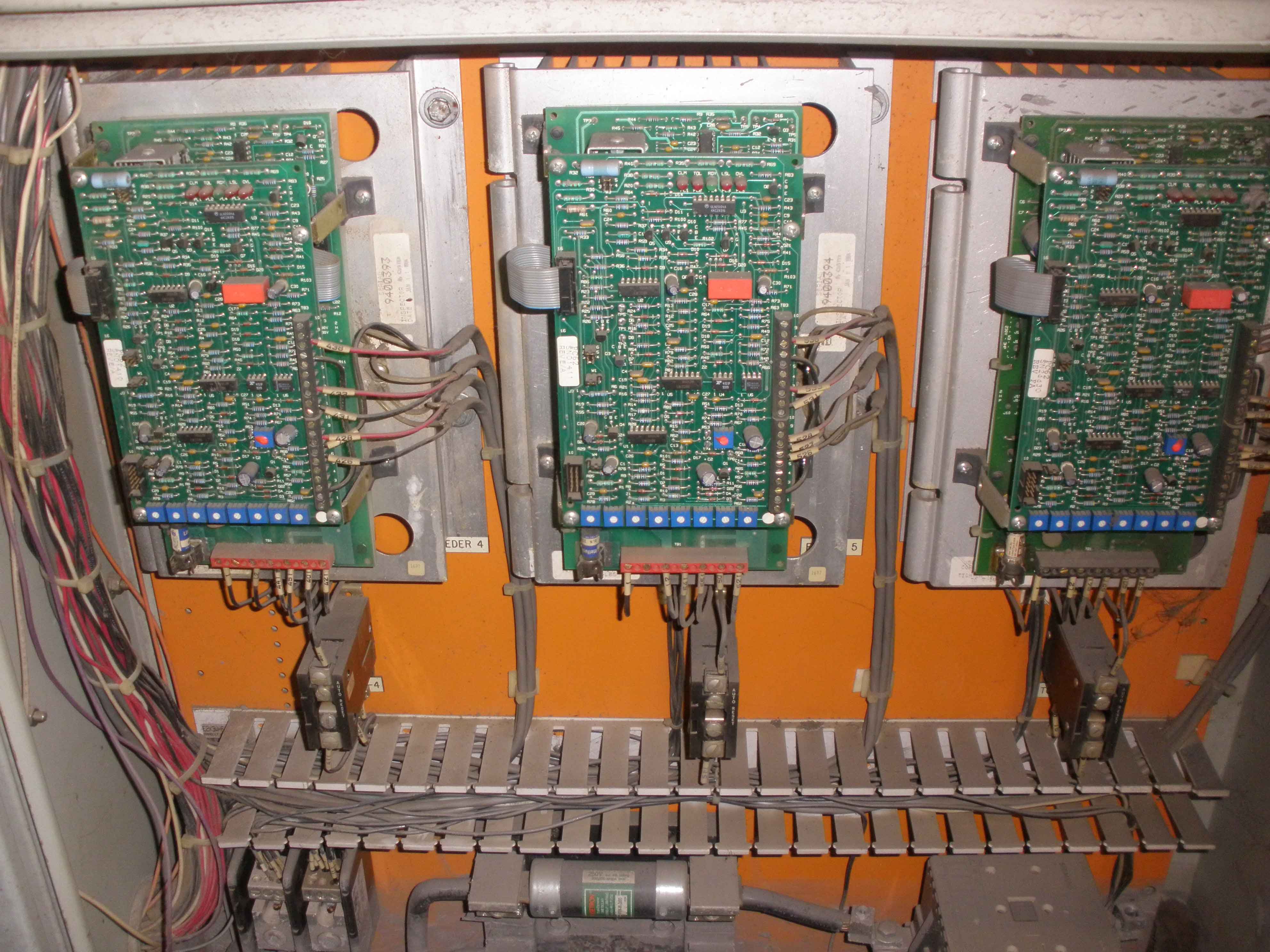

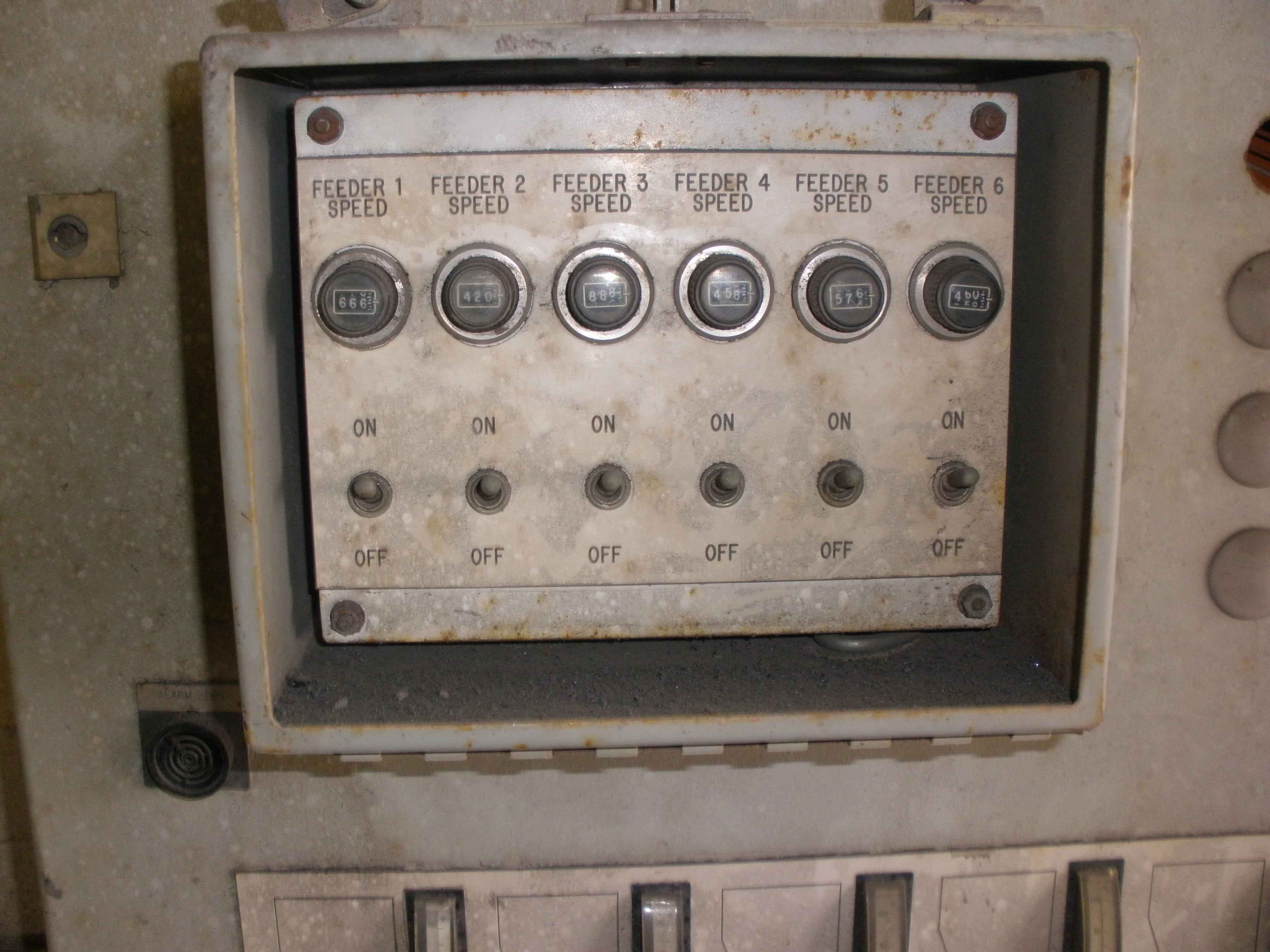

Coldfeed Controller for 6 Aggregate Bins (R) (N111) $4,000 Photo1 Photo2 Photo3 Photo4

(2) 8'x9' Aggregate Feed Bins, Built as 1 section (F)(206003A1) $6,000 Photo1

(3) 8'x9' Aggregate Feed Bins, Built as 1 section (F)(206003A2) $9,000 Photo1

Dryer

8' x 30' 6,000 lb. Gear Driven CounterFlow Drum Drier, Bolt on Flights, Flat Style, 50 HP, Semi Portable, Setup for 5th Wheel Attachment, Needs Tires,Trunions, & Std Flight rebuild $5,500 Photo1

Dust Collection

Cyclone, 48,000 cfm 1990* Dry, mfg:C.M.I. & J.T.Systems Inc., Primary Dust Collector & Duct Work(F) (200001) $8,000

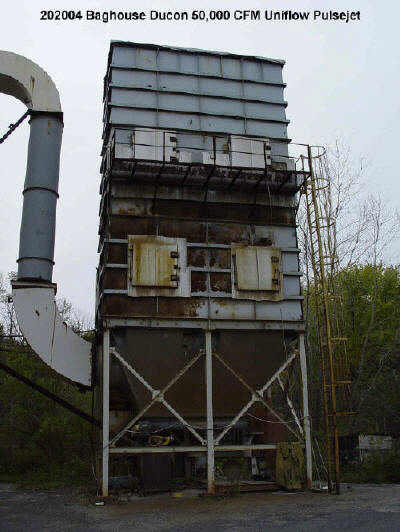

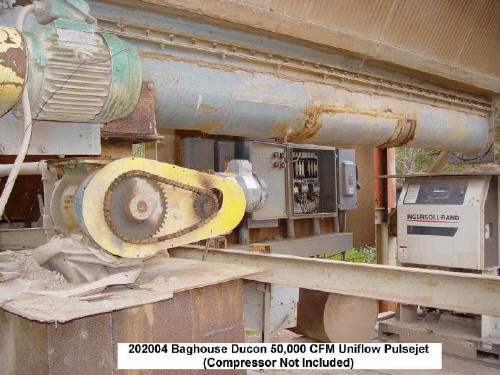

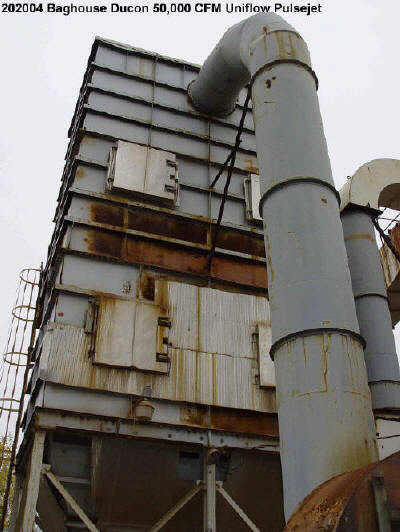

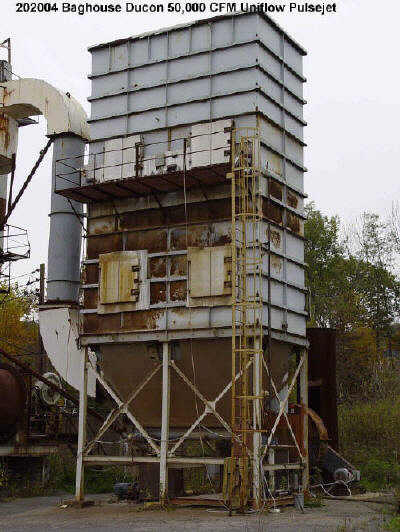

Baghouse, Ducon Environmental, 50,000 CFM Uniflow Pulsejet, Good Condition(F) (202004)$37,000

Photo1 Photo2 Photo3 Photo4

Dust Collector Exhaust Fan, 250HP (No Motor) (F) (210002) $9,000 Photo1

Miscellaneous

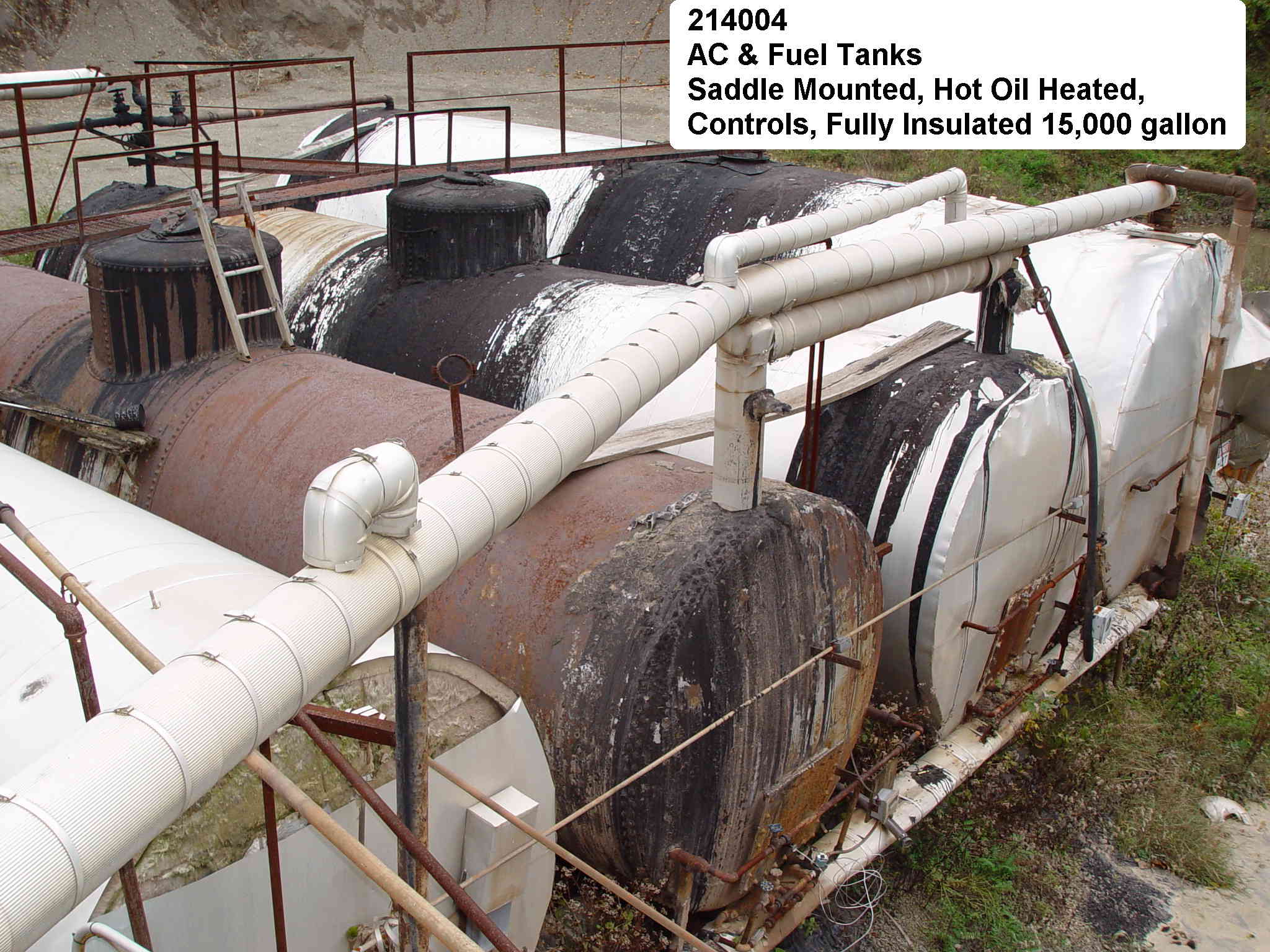

Asphalt Storage Tank 15,000gal, Saddle Mounted, Hot Oil Heated, Controls, Fully Insulated (empty) (Good Cond.)(F) (214004A) $10,000 Photo1 Photo2 Photo3

Asphalt Storage Tank 15,000gal, Saddle Mounted, Hot Oil Heated, Controls, Fully Insulated (empty) (Good Cond.)(F) (214004B) $10,000 Photo1 Photo2 Photo3

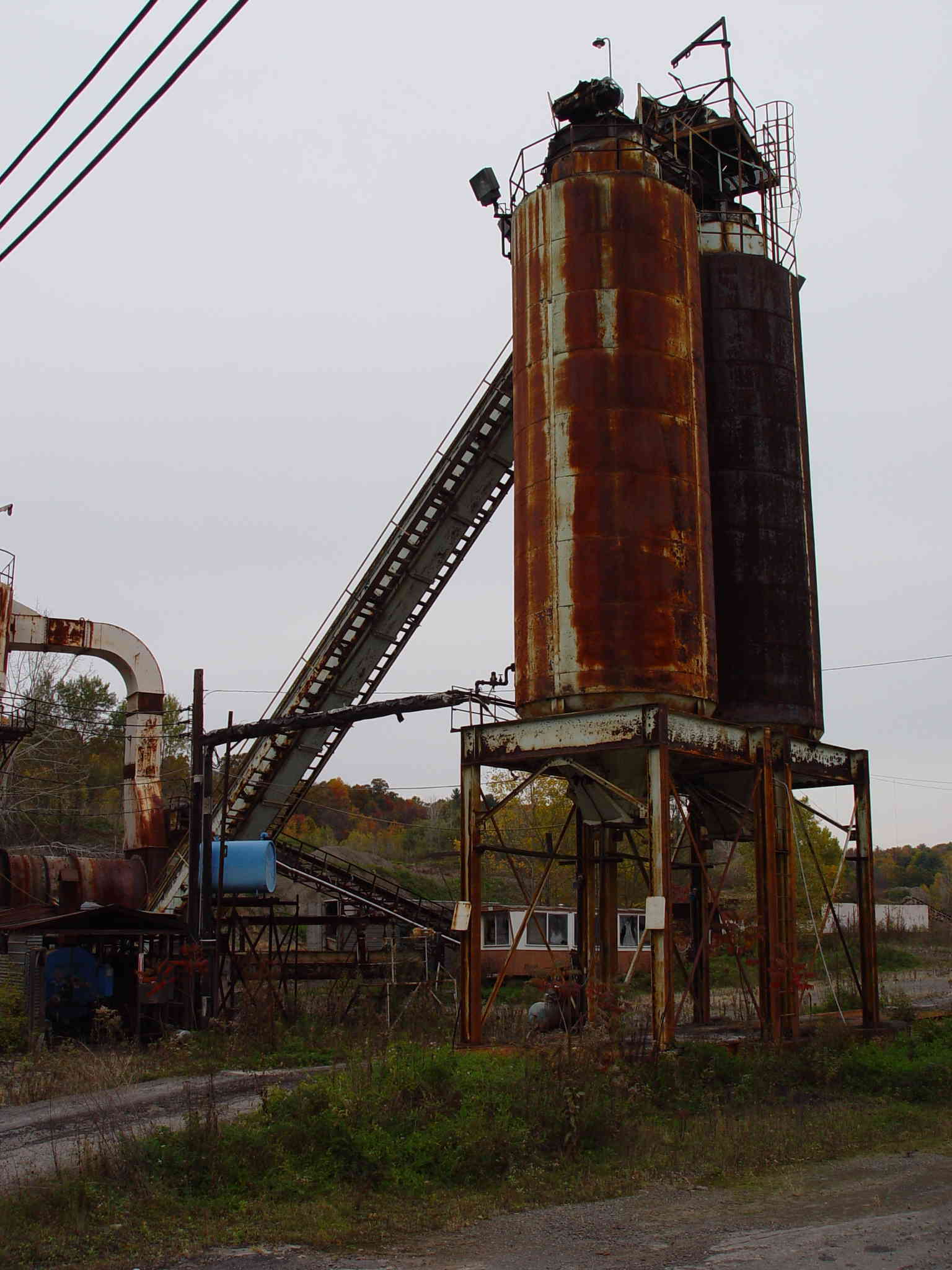

Silo System Components Photo1 Photo2

Drag Slat Conveyor, Standard Havens, 300tph, 31"wide, 4" pitch Twin Chain Drive, Hot Oil Heated, 60HP Drive, Chrome Carbide Floor (F) (208003) $22,000

Silo 200 Ton, Standard Havens, Fully Hot Oil Jacketed Stationary Units, Air Operated Gates, 3 ton batchers, Electric Gate and Cone Heaters, Run and Loadout Controls, no starters (217003) $22,000

Silo 200 Ton, Standard Havens, Fully Hot Oil Jacketed Stationary Units, Air Operated Gates, 3 ton batchers, Electric Gate and Cone Heaters, Run and Loadout Controls, no starters (217006) $22,000

24" Traverse Auger Standard Havens (F) (208009) $4,000

Tower Components

Batch Plant Tower, StanSteel 1962*, mn:RM60, sn:523PLANT4877, 5 Compartment Hot Bin Tower Section (80ton each), 6,000 lb., Asphalt Weigh Bucket, Plant Platforms (218002B) $5,000 Photo1

Hot Elevator, Vertical Enclosed, 18"x8" Buckets, 40HP, Good Condition, (F) (213002) $9,000 Photo1
